Expert 10R80 Automatic Gearbox Rebuild for a 2020 Ford Ranger in Kilmarnock 🛻🔧

View the rebuild video on our YouTube Channel

For many businesses across Kilmarnock and Ayrshire, a commercial vehicle isn’t just transportation; it is the absolute backbone of their operation. When a dedicated work truck is off the road, it’s not just an inconvenience—it's costing you money by the minute.

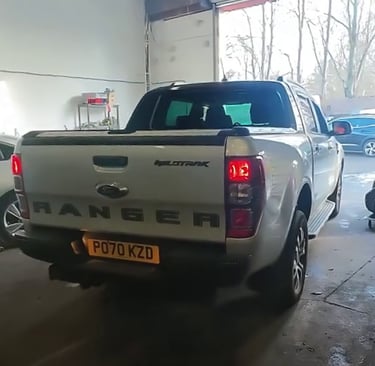

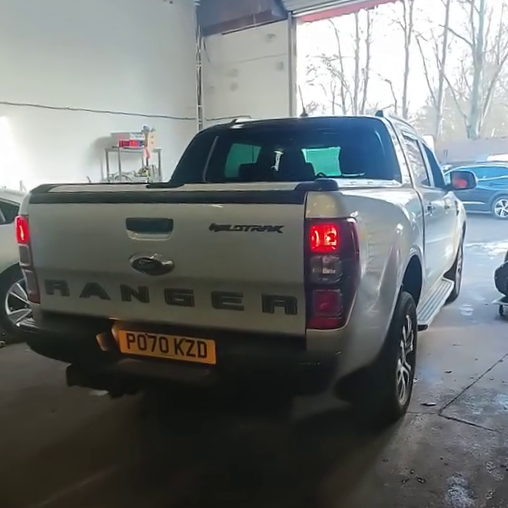

Recently, a local customer brought their crucial 2020 Ford Ranger Wildtrak into the Mechtronics workshop. The symptom was one that makes any driver's heart sink: a complete and sudden loss of drive. For a heavy-duty commercial vehicle, being stuck in neutral is the ultimate nightmare scenario.

The culprit was clear: a total internal failure within its sophisticated 10R80 automatic transmission.

Because modern automatic gearboxes are incredibly complex, many standard repair centres simply do not have the specialised knowledge, the advanced diagnostic equipment, or the precision tools required to tackle them. But complex diagnostics and heavy-duty mechanical repairs are exactly what we specialise in here at Mechtronics.

Here is an in-depth look at what goes into rebuilding a 10-speed powerhouse like the 10R80, and why getting it right requires absolute precision.

The Challenge: Specialised Knowledge for Specialised Machines

The 10R80 is a marvel of engineering—a highly sophisticated 10-speed automatic gearbox designed to keep the engine in its absolute optimal power band. By packing 10 distinct gear ratios into the space of a traditional 6-speed, it provides unparalleled efficiency, smooth acceleration, and incredible towing capacity. However, that many moving parts packed into a single casing means the tolerances are incredibly tight. When a component fails—such as a seal, bearing, or one of the intricate clutch packs—it requires a specialised approach that few possess.

We bypassed the "quick fixes" that might save a pound today but cost a fortune tomorrow. This work truck needed a surgical approach.

The Mechtronics 10R80 Rebuild Process: Step-by-Step Precision

We never cut corners on any transmission rebuild. Here is a look at the meticulous process our expert technicians carried out:

1. Advanced Diagnostics & Data Logging: Before turning a single spanner, we use our dealer-level diagnostic equipment to interrogate the Transmission Control Module (TCM). We look at live data, shift adaptions, and internal hydraulic pressures to pinpoint exactly why the failure occurred.

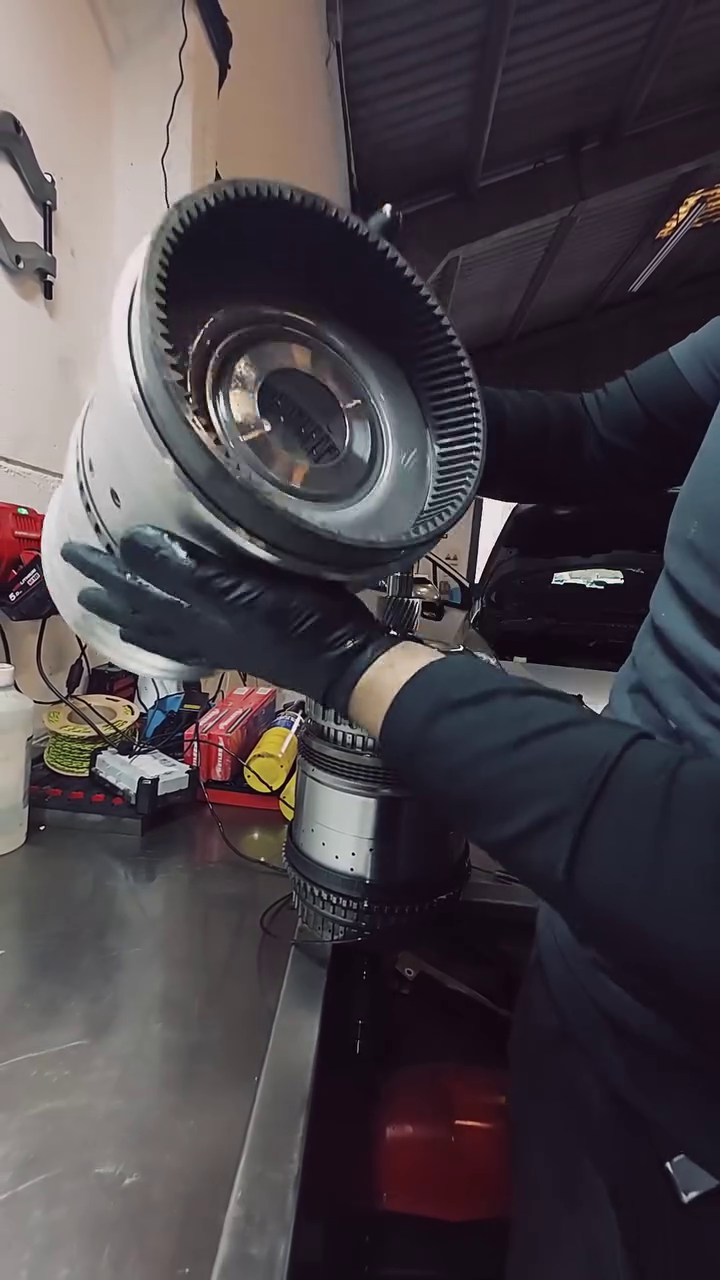

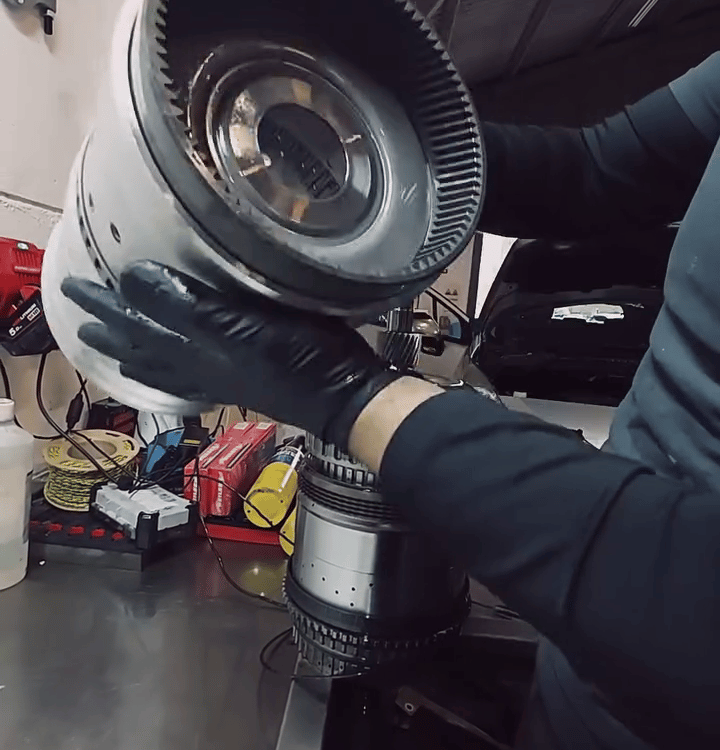

2. A Meticulous Bench Strip-Down: Once the gearbox is removed from the vehicle, it goes onto the bench for a complete teardown. Every single shaft, planetary gearset, and bearing is meticulously cleaned and inspected under bright light.

We discovered catastrophic internal damage within its core. This wasn’t just a simple wear item failure; it was a complex cascade of issues requiring total replacement.

3. Future-Proofing with OE-Specification Parts: We don’t just rebuild; we aim to prevent the failure from ever happening again. Where common 10R80 failure points are known (such as the notoriously problematic CDF clutch drum cylinder, which often suffers from pressure loss), we upgrade to the latest, strengthened Original Equipment (OE) specification components to ensure maximum durability. All worn clutches, blown seals, and degraded bearings are binned and replaced with high-quality, OE-spec parts. We cut zero corners on materials.

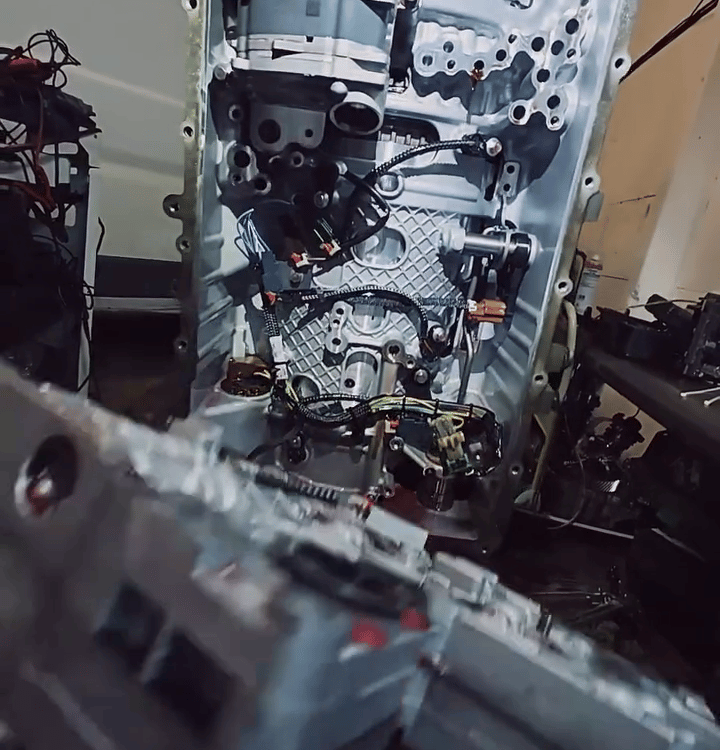

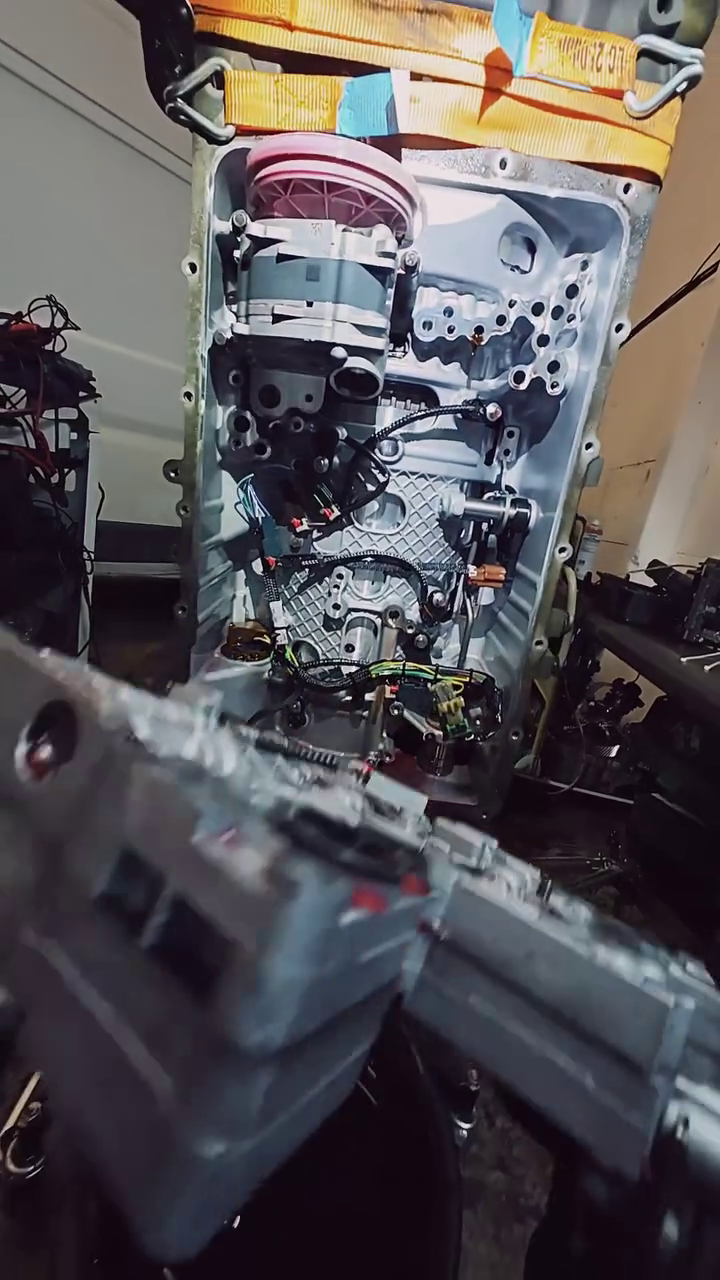

4. Servicing the Mechatronics: The valve body is the brain of the operation, an intricate maze of hydraulic channels and electronic solenoids directing fluid to execute gear changes in milliseconds. We completely strip, ultrasonically clean, and test this unit to ensure absolute precision. A single speck of debris here can impact a newly built gearbox.

5. Correct Grade Transmission Fluid is CRITICAL: This is a key step that many standard garages overlook. The 10R80 relies on an ultra-low viscosity (ULV) transmission fluid to operate its intricate hydraulics and cool the heavily compacted internal clutch packs. Using a generic "multi-vehicle" automatic transmission fluid is a death sentence for this gearbox. We flushed the entire system, including the transmission cooler lines, and refilled it using strictly the manufacturer-specified, correct grade of ULV oil.

6. TCM Reset and Adaptive Relearn: A mechanical rebuild is only half the battle. We must perform a full system reset of the TCM. Because the computer constantly "learns" how clutches wear to adjust shift pressures, it currently thinks it is still operating a broken gearbox. Using our advanced diagnostic computers, we clear the old data and perform a forced "adaptive relearn" drive cycle, teaching the vehicle's computer how to shift with its brand-new internal hardware. The result? Buttery-smooth gear changes.

Protecting Your Livelihood with Fast Turnarounds and Reliable Repairs

We understand that a commercial work van or truck showing transmission trouble is a massive headache. As a proudly local, family-run garage in Ayrshire, one of our biggest strengths is our ability to offer quick turnarounds and short-notice bookings. We prioritise getting you and your business back on the road safely, without the weeks of waiting often associated with main dealerships—and without the eye-watering price tag.

Thanks to our team's expertise and professional equipment, this 2020 Ford Ranger work truck is now shifting flawlessly through all 10 gears, back to handling its payload exactly as intended.

Whether you are dealing with automatic transmission slipping, harsh gear changes, or require specialised services like vehicle electrical diagnostics, remapping and tuning, DPF solutions, or AdBlue repairs, our friendly and knowledgeable team has the tools to sort it properly.

Is your commercial vehicle showing signs of transmission trouble? Don't wait for a complete failure.

📞 Call us for advice or to book in: 01563 606620

📍 Visit the workshop: 44 Bentinck Street, Kilmarnock, KA1 4AW

Quality Work. Reliable Results. Keeping Ayrshire Moving.
